Explosion Vent Sizing for Flammable Vapor Storage (NFPA 68)
When dealing with flammable solvents like ethanol, acetone, dimethylformamide (DMF), or similar chemicals, it’s critical to design proper explosion venting in compliance with NFPA 68 standards.
💡 Key Parameters in Explosion Vent Sizing
- V = Volume of the enclosure (in m³)
- Pmax = Maximum explosion pressure without venting (bar absolute)
- Pred = Reduced explosion pressure with venting (bar)
- K = Empirical constant (typically 0.1–0.3 for vapor deflagration)
🧮 Explosion Vent Area Formula (NFPA 68)
A = K · V^0.753 · [log₁₀(Pmax / Pred)]^1.2
✅ Real Example – 230 m³ Room
For a 230 m³ room containing ethanol or acetone, and a reduced explosion pressure (Pred) of 0.3 bar:
- Pmax = 8.5 bar (for ethanol)
- Pred = 0.3 bar
- K = 0.13
The required vent area would be ≈14.7 m².

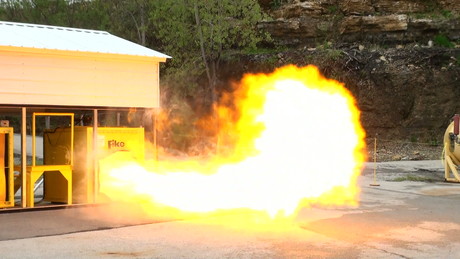

🛡️ Flameless Venting Option
If using a flameless explosion vent unit (e.g., 1110×1110 mm), the maximum Pred may rise to 1.6 bar. This increases safety indoors by suppressing flame release.
Using the same formula, the required area drops to ≈5.31 m². Each unit provides ~1.23 m², so you'll need:
- Number of flameless units = 5
🚫 What Is a Flameless Explosion Vent?
A flameless vent is a protective device that allows gases to be vented during an explosion, but prevents flame and heat from escaping. It combines a burst panel with a flame-arresting mesh and is ideal for indoor installations.
✅ Benefits:
- No external flame release
- Indoor use – no vent ducts required
- Protects equipment and people
📦 Summary
- Calculate vent area using NFPA 68 formula
- Use standard venting or flameless units based on environment
- Always verify Pmax, Pred, and K with official data or NFPA 68 tables
🔗 Tools & References
- NFPA 68 Vent Calculator (UT Fire Research)
- WinVent Sizing Tool (EN 14491)
- SHAPA/Fike Vent Sizing Guide (PDF)
Ensure all explosion protection systems are designed and reviewed by qualified engineers to comply with NFPA, EN, and local fire code standards.
